The Foundation of a Great Shed
How to build a shed base is the critical first step in creating a long-lasting, stable shed. Without a proper foundation, even the highest quality shed will develop problems over time.
Quick Answer: How to Build a Shed Base
- Choose your base type based on soil, climate, and shed size (concrete, gravel, timber, or plastic grid)
- Mark and prepare the site (clear vegetation, measure, square the corners)
- Excavate 4-6 inches of soil, extending 12 inches beyond shed dimensions
- Add landscape fabric to prevent weed growth
- Install base materials (compact gravel, pour concrete, or assemble timber frame)
- Level thoroughly using a spirit level or laser level
- Add drainage features if needed
- Anchor the shed to the base for stability
A solid shed foundation prevents moisture damage, keeps doors and windows operating smoothly, and significantly extends your shed’s lifespan. The right base also helps distribute weight evenly, preventing settling and structural stress.
Choosing the Right Shed Base & Foundation Types
When figuring out how to build a shed base, the first big decision is choosing between two main foundation categories:
- On-grade foundations rest directly on the ground’s surface and work perfectly for smaller sheds up to 160 square feet. These include gravel pads, timber frames, paving slabs, and plastic grid systems.
- Frost-proof foundations dig deeper, extending below the frost line where the ground freezes in winter. These are necessary for larger structures (typically over 200 square feet) or if you live somewhere with harsh freeze-thaw cycles. Concrete piers and poured concrete slabs fall into this category.
Let’s break down each option:
Concrete Slab
The concrete slab is the heavyweight champion of shed bases. It’s incredibly durable and won’t budge over time, making it perfect if you’re planning a workshop where you’ll use heavy equipment.
Gravel Pad
This is what I recommend to most of my customers who want a balance of affordability and performance. A proper crushed stone base provides excellent drainage and most handy homeowners can tackle this project themselves over a weekend. Expect to spend between $5-$10 per square foot.
Timber Frame
I love timber frames for slightly uneven yards. Using pressure-treated lumber, you create a frame that sits just above ground level and fill it with gravel. This design allows for great airflow underneath your shed, which helps prevent moisture problems.
Paving Slabs
Think of paving slabs as the middle ground between loose gravel and a poured concrete foundation. They provide more stability than gravel alone but don’t require mixing and pouring concrete.
Plastic Grid Systems
These newer systems have become increasingly popular. They’re lightweight, click together like puzzle pieces, and many are made from recycled materials. Fill the cells with gravel, and you’ve got a stable base that allows for excellent drainage.

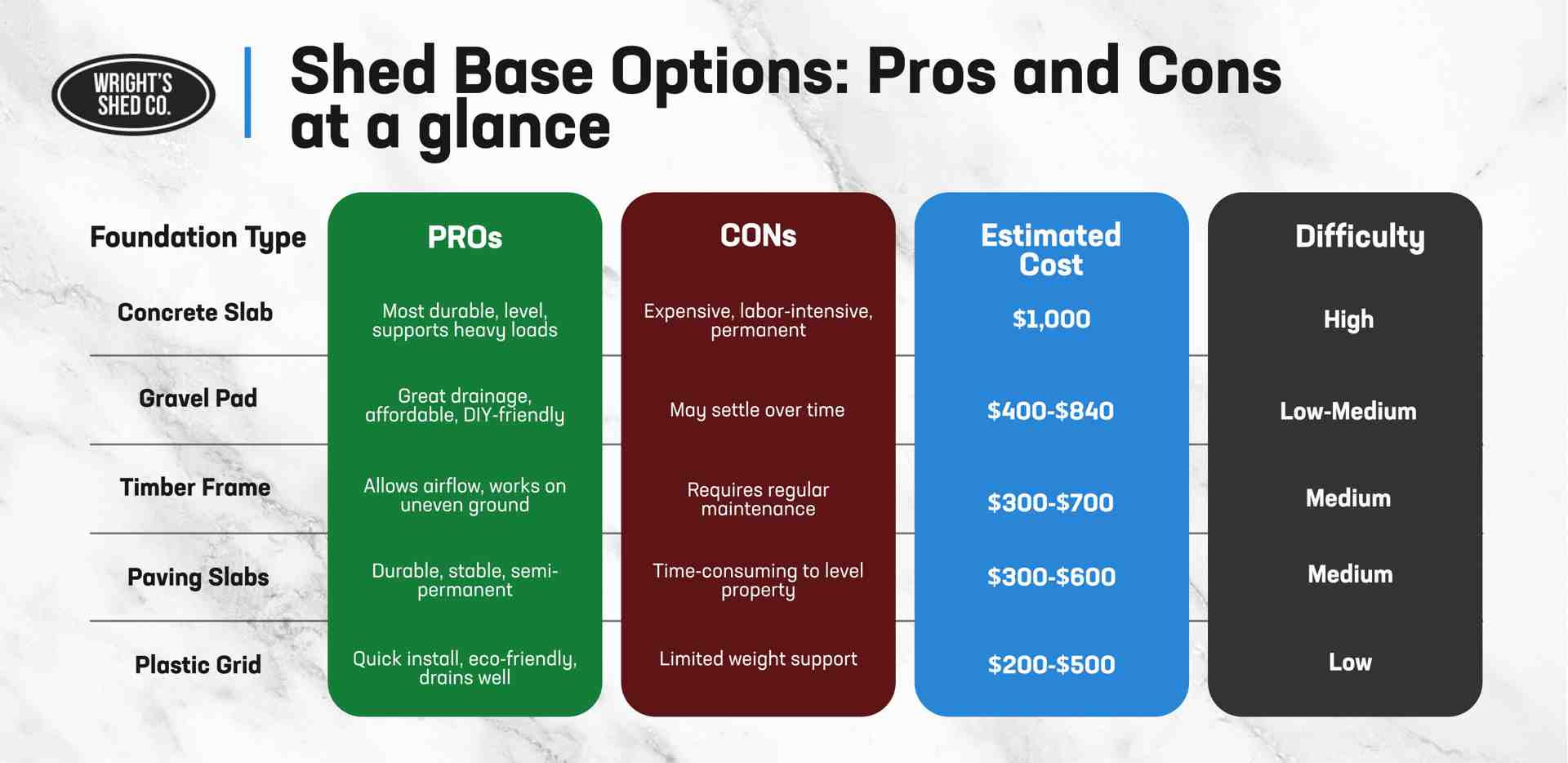

Pros and Cons at a Glance
Matching Base to Site Conditions
Soil Composition:
Clay soil holds moisture and shifts during freeze-thaw cycles. If you’ve got clay, prioritize good drainage with gravel or concrete foundations. Sandy soil drains well naturally but might not support weight evenly.
Frost Line Depth:
In Utah and Idaho, frost lines typically range from 30-50 inches deep, while in Iowa and Nebraska, they can reach 36-60 inches. For larger sheds over 200 square feet, your foundation should extend below these depths.
Slope Percentage:
If your yard is flat or has just a gentle slope (under 2%), any type will work well. For moderate slopes (2-10%), consider a timber frame with adjustable footings or concrete piers.
Water Table:
If groundwater sits close to the surface, you’ll want to lift your shed with a gravel pad or timber frame on concrete blocks.
Local Codes and Setbacks:
Most cities and counties only require permits for sheds exceeding 200 square feet, but setback requirements (typically 5-10 feet from property lines) apply to sheds of all sizes.
For more detailed information about foundation types, check out our comprehensive guide: More info about foundations
How to Build a Shed Base: Step-by-Step
Now that you understand the options, let’s break down how to build a shed base with detailed steps for each foundation type.
Step 1: Plan & Permit
Before breaking ground, proper planning is essential:
- Call 811 before digging – This free service marks underground utilities to prevent dangerous accidents.
- Check local regulations – Most areas don’t require permits for sheds under 200 sq ft, but requirements vary by location.
- Determine size requirements – Your shed base should extend at least 12 inches beyond your shed dimensions on all sides for drainage and stability.
- Choose your location wisely:
- Avoid low spots where water collects
- Ensure adequate clearance from property lines
- Consider sun exposure and accessibility
- Gather necessary tools and materials:
- Measuring tape and stakes
- String or mason’s line
- Carpenter’s square or 3-4-5 method tools
- Shovel and rake
- Level (spirit level or laser level)
- Tamper or plate compactor
- Safety gear (gloves, eye protection)
Step 2: Prepare & Level the Ground
Proper ground preparation is crucial:
- Clear the area – Remove all vegetation, rocks, and debris from the site and at least 1 foot beyond your planned base perimeter.
- Mark the perimeter – Use stakes and string to outline the base area. For square corners, use the 3-4-5 method.
- Check for level – Use a long straight edge and spirit level to identify high and low spots.
- Excavate the site:
- For gravel bases: Dig 4-6 inches deep.
- For concrete: Dig 6-8 inches (3″ for concrete + 3-5″ for hardcore).
- For timber frames: Remove topsoil and level.
- Compact the soil – Use a tamper or plate compactor to create a firm, stable base.
- Add landscape fabric – This crucial step prevents weed growth and improves drainage.
Step 3: Build or Install the Foundation Frame
The next steps vary depending on your chosen foundation type:

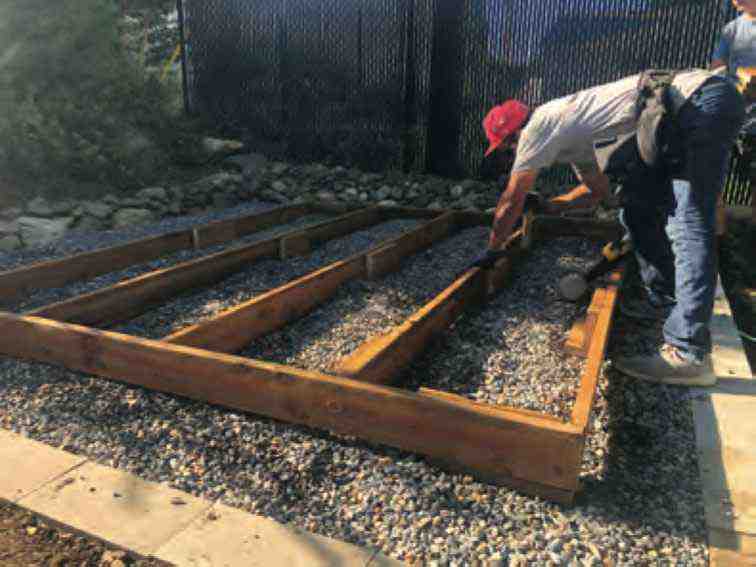

For a Timber Frame Base:
- Use pressure-treated lumber rated for ground contact.
- Assemble the frame with galvanized screws or nails, checking for square.
- Install joists at 16″ intervals for proper support.
- Add rebar stakes or L-brackets to secure the frame.
For a Gravel Pad:
- Create a perimeter frame using pressure-treated lumber or metal edging.
- Secure the frame with stakes driven at least 12 inches into the ground.
For Concrete Piers:
- Dig holes 12 inches in diameter and below the frost line.
- Add gravel to the bottom of each hole for drainage.
- Place Sonotube concrete forms in the holes.
- Mix and pour concrete, inserting J-bolts or post anchors before it sets.
For more information on proper gravel compaction techniques, visit SitePrep’s article on gravel shed foundations.
Step 4: Fill, Pour, or Lay Your Base
Now it’s time to complete your foundation:
For a Gravel Base:
- Fill with ¾” clean crushed stone (avoid rounded pea gravel).
- Add gravel in 2-inch layers, compacting each layer thoroughly.
- The final surface should be slightly crowned for drainage.
For a Concrete Slab:
- Add and compact hardcore (crushed stone).
- Build formwork using lumber secured with stakes.
- Add reinforcement mesh or rebar grid.
- Mix concrete using a 1:2:3 ratio (cement:sand:aggregate).
- Pour concrete and screed the surface level.
For a Paving Slab Base:
- Add and compact hardcore.
- Add sharp sand and level it.
- Lay slabs on a mortar bed, checking level as you go.
Step 5: Check Level & Anchor the Shed
The final steps ensure your shed remains level and secure:
- Perform a final level check – Verify the entire base is level.
- Prepare for anchoring – Different foundation types require different anchoring methods.
- Install anchors – Follow manufacturer guidelines for your specific anchor type.
For detailed information on anchoring methods, check out American Earth Anchors’ guide on how to anchor a shed without concrete.
Special Situations & Pro Tips
In my years of building sheds across the Midwest, I’ve encountered plenty of challenging conditions that required creative solutions when figuring out how to build a shed base.
Building on a Slope
For gentle slopes up to 10%, you’ve got several practical options:
A terraced foundation works by cutting into the slope on the high side while building up the low side. This creates a level platform that looks natural in the landscape.
A pier foundation uses concrete piers of varying heights to create a level surface – particularly effective in rocky terrain where extensive digging would be difficult.
Many customers prefer a small retaining wall on the low side to contain fill material. This not only creates a stable base but adds a nice landscaping element to your yard.
For steeper slopes exceeding 10%, you’ll need more substantial solutions:
A post and beam foundation sinks posts into the ground below the frost line and connects them with beams to create a level platform.
Concrete footings of varying heights can create a rock-solid level base, though this approach requires more skill.
Dealing with Poor Drainage
A French drain has saved countless sheds in soggy areas. Simply dig a trench around the uphill side of your shed, fill it with gravel and a perforated pipe, and direct water away from your structure.
For subtle drainage issues, a swale (a shallow ditch that directs water around your shed) can be all you need.
A raised base lifted 6-8 inches above ground level prevents water intrusion and adds crucial airflow beneath your shed.
High Water Table Solutions
A raised gravel pad built up 8-12 inches above grade allows you to rise above the problem. The key is extending the pad at least 12 inches beyond your shed footprint.
Plastic grid systems have become my go-to recommendation for high water table areas. These modern solutions allow water to drain through while providing a stable base.
For ultimate protection, concrete piers that lift the shed with a wooden floor system create excellent separation from ground moisture.
Budget-Friendly & No-Concrete Alternatives
Not everyone has the budget for expensive materials or wants to deal with the hassle of mixing concrete. I’ve helped countless homeowners create sturdy shed bases without breaking the bank.
Cinder Block Foundation
A cinder block foundation gives you many of the benefits of concrete without the mixing and pouring. Start by excavating and leveling your site, then add compacted gravel for drainage. Place concrete blocks at regular intervals (every 2-3 feet) in a grid pattern. Top it with pressure-treated lumber to create a frame.
This approach typically costs between $200-$400 for an 8×10 shed, making it an economical way to build a shed base while still maintaining quality. The best part? You can adjust individual blocks if settling occurs years later.
Pallet Base
I’m always surprised by how well a properly prepared pallet base can perform. The key is using only pressure-treated or heat-treated pallets (look for the “HT” stamp). Place these on a level bed of compacted gravel, secure them together with galvanized screws or metal strapping, and cover with exterior-grade plywood.
This solution often costs under $100 if you source reclaimed pallets, making it perfect for smaller garden sheds.
Adjustable Plastic Grids
Modern plastic grid systems have revolutionized how to build a shed base for DIYers. These lightweight, interlocking panels distribute weight evenly while allowing for excellent drainage. Simply level your site, lay down landscape fabric to prevent weed growth, assemble the grid according to manufacturer instructions, and fill with gravel if desired.
These systems typically cost $200-$500 depending on size and brand, but their ease of installation and long-term stability make them worth considering.
Reclaimed Paving
One person’s leftover paving materials can become your perfect shed foundation. I’ve seen beautiful shed bases made from reclaimed concrete pavers, brick, or stone slabs. Prepare your site with compacted gravel, add a thin layer of sand, and lay your reclaimed materials in a pattern that provides even support.
This approach can cost as little as $25-$100 if you’re resourceful with sourcing materials.
For more budget-friendly shed building tips, visit Wright’s Shed Co.’s guide on how to build a shed.
Cost, Maintenance & Common Mistakes
Let’s talk dollars and sense when it comes to how to build a shed base. Understanding the full financial picture—not just the upfront costs—can save you headaches down the road.
Cost Breakdown
A gravel pad typically runs between $400-$600 in materials for an 8×10 shed, making it one of the most budget-friendly options. You’ll invest about 6-10 hours of your weekend if you’re handling it yourself, or expect to pay $800-$1,200 for professional installation.
Concrete slabs sit at the higher end of the spectrum at $600-$1,000 for materials. Professional installation jumps to $1,200-$2,000, but remember—you’re investing in decades of stability.
Timber frames offer a nice middle ground at $300-$500 in materials with a manageable 4-8 hour DIY timeline. Professional installation typically ranges from $600-$1,000.
Paving slabs and plastic grid systems round out the options, with materials costing $350-$600 and $200-$400 respectively.
Long-Term Maintenance
Gravel bases need checking for settling annually and fresh gravel as needed. Those pesky weeds that somehow find their way through landscape fabric will need removing, and every 3-5 years, you might need to rent a compactor for a quick refresh.
Concrete slabs are the low-maintenance champions, but they’re not completely “set it and forget it.” Seal any cracks promptly to prevent water damage, and plan to clean and reseal the surface every few years.
Timber frames require the most vigilance. I recommend an annual inspection for signs of rot or insect damage, especially after wet seasons.
Common Mistakes to Avoid
After building thousands of shed bases, I’ve seen just about every mistake in the book. The most common? Undersizing the base. Always make your foundation at least 12 inches larger than your shed footprint on all sides.
Skipping the weed barrier is another false economy I see all too often. This $20-30 investment prevents countless hours of future headaches.
Perhaps the most consequential mistake is inadequate compaction. When customers call us about doors that won’t close properly, the culprit is almost always uneven settling from poorly compacted base materials.
Not checking for level throughout the process can doom your project from the start. Even half an inch off can cause doors to bind and walls to twist.
Many homeowners also make the mistake of ignoring drainage considerations. Even the most perfectly built base will fail if water pools around it.
Using the wrong materials is surprisingly common—like using rounded pea gravel instead of angular crushed stone. The angular edges of proper crushed stone lock together when compacted, while rounded stones will always shift under weight.
Frequently Asked Questions about Building a Shed Base
How big should the base be compared to the shed?
One question I hear all the time from our customers at Wright’s is about sizing the base properly. Here’s the simple rule of thumb: your shed base should extend at least 12 inches beyond your shed dimensions on all sides.
This extra foot around the perimeter isn’t just about being cautious—it serves several important purposes. It creates a buffer zone that improves drainage around your structure, preventing water from pooling directly against your shed walls. That extra space also provides a stable perimeter that prevents soil erosion underneath the edges of your shed.
So if you’re planning an 8×10 foot shed, aim for at least a 10×12 foot base. Your future self will thank you!
Can I build a shed base without using concrete?
Absolutely yes! Despite what some might tell you, concrete isn’t always necessary for a solid shed foundation. In fact, many of our customers prefer concrete-free options, and we’ve installed hundreds of sheds on alternative bases that have performed beautifully for years.
Gravel pads are my personal favorite non-concrete option. They drain exceptionally well and provide great stability without the permanence (or cost) of concrete. Timber frames built directly on level ground or lifted on concrete blocks offer another flexible solution.
For those looking for a quick weekend project, plastic grid systems have become increasingly popular. They snap together easily and can be filled with gravel for added stability.
The secret to success with any of these options isn’t the material itself—it’s the preparation. A well-leveled, properly drained non-concrete base will outperform a poorly done concrete slab every time.
Do I need planning permission or permits to build a shed base?
The short answer is: probably not, but it’s always worth checking. In most areas where we operate—Utah, Idaho, Iowa, and Nebraska—you typically don’t need permits for smaller sheds under 200 square feet that aren’t connected to utilities and don’t include permanent foundations.
But regulations can vary dramatically from one town to the next. Even without a permit requirement, you’ll likely need to follow setback rules (typically keeping your shed 5-10 feet from property lines) and height restrictions.
And if you live in an HOA neighborhood? Well, that’s a whole different ballgame. HOA requirements are often more restrictive than municipal codes, and some can be surprisingly specific about shed appearance, placement, and size.
I always recommend a quick call to your local building department before starting. It’s a five-minute conversation that could save you significant headaches down the road.
Wright’s Shed Co.’s Take on How to Build a Shed Base That Stands Strong
There’s an old saying among builders: “A house is only as good as its foundation.” The same holds true for your shed. How to build a shed base correctly isn’t just a preliminary step—it’s the foundation of your shed’s entire future.
I’ve seen it countless times in my years at Wright’s Shed Co. Two identical sheds, built the same day, with the same materials. Fast forward five years, and one looks brand new while the other has sagging floors, sticking doors, and a tilting frame. The difference? The foundation.
That solid foundation you’re creating today is an investment in trouble-free ownership tomorrow. When you take the time to properly prepare your site, level the ground, and build a sturdy base, you’re essentially giving your shed the best possible start in life.
Whether you’ve chosen the permanence of concrete, the excellent drainage of gravel, the adaptability of timber, or the convenience of plastic grids, following the detailed steps in this guide will serve you well. How to build a shed base varies by location—what works perfectly in the dry climate of Utah might need modifications for the freeze-thaw cycles of Iowa.
The foundation truly is a one-time effort that pays off for decades. When done right, you’ll hardly think about it again. When done poorly, it’ll remind you of your mistake every time you try to open that sticking door or notice that growing crack in the wall.
At Wright’s Shed Co., we’ve been perfecting the art of shed foundations since 1997. Our experience across Utah, Idaho, Iowa, and Nebraska has taught us that attention to detail matters tremendously at this stage. If you’re feeling overwhelmed by the process or want professional guidance, our team is always ready to help. We offer not just premium structures but also the expertise to ensure they stand the test of time.
There’s something deeply satisfying about building a shed base yourself. Standing back after a weekend’s work, seeing that perfectly level foundation ready to support your new storage space—it’s a moment of well-earned pride. And every time you use your shed in the years to come, you’ll know that your careful work made its longevity possible.
